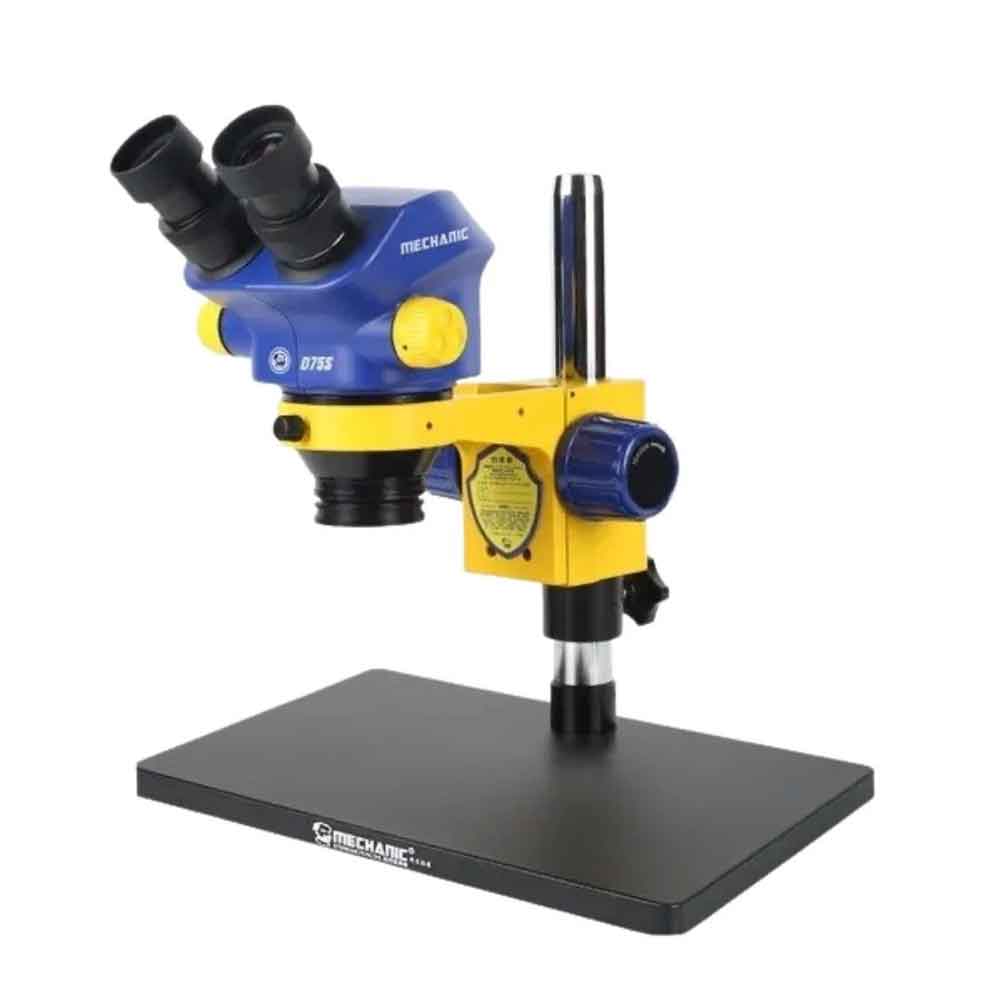

Mechanic D75S-B11 Binocular Stereo Microscope With 7X 50X Continuous Zoom


Mechanic D75S-B11 Binocular Stereo Microscope With 7X 50X Continuous Zoom

Rs.12,998.00 Rs.15,999.00

Mechanic D75S-B11 Binocular Stereo Microscope With 7X 50X Continuous Zoom

  • 7X-50X zoom magnification power with crisp sharp images
  • Widefield of view* Sturdy all-metal pillar stand
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true-co microscope images
  • Large working distance Sturdy all-metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Adjustable interpupillary distance
  • Adjustable bracket, lifting range:50mm; easy to operate
  • Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
  • Eyepiece: WF10X/22mm High Eyepiece
  • Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
  • Magnification:7X-50X

Specification:

  • Product Name: Industrial grade binocular stereo microscope
  • Product Model: D75S-B11
  • Product Size: 195*253*225mm
  • Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)
  • Objective Len: 0.7X-50X
  • Eyepiece: WF10X22 High Eyepiece
  • Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
  • Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
  • Focusing bracket: Adjustable elasticity of focusing handwheel, lifting range 50mm
  • Base Size: 195*256*20mm
  • LED light source: High brightness cold white light source, can be adjusted freely
  • Applicable Fields: Teaching Demonstafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection

Package includes:

  • 1 x Microscope Head
  • 1 x Dust bag
  • 1 x 0.7x or 0.5x zooming lens ( CHOOSE ANY ONE )
  • 1 x Dust proof mirror
  • 1 x Focusing arm
  • 1 x Metal Base (100 mm)
  • 1 x Height limiting fixed shaft
  • 2 x WF10X22 Eyepiece
  • 4 x Rubber eye guards
  • 1 x Double-sided loading plate
  • 1 x LED ring lamp
  • 1 x Safety manual

NOTE : THIS PRODUCT IS BINOCULAR,THIS PRODUCT DOESN’T SUPPORT CAMERA FEATURE.

SKU: MCND75SB11 Categories: , ,

General

Weight 6.0 kg
Dimensions 35 × 25 × 20 cm
